99.6% High Efficiency Pump Inverter For Off Grid System

Brand : BZ or Bangzhao or OEM

Product origin : China

Delivery time : 5-7 working days

Supply capacity : 10000 PCS/Year

1,MPPT400-800VDC 2,Optional RS485 and AC bypass input 3,pure sine wave output 4,apply for all types load

99.6% High Efficiency Pump Inverter 63hp pump motor For Off Grid System

Product Description for 99.6% High Efficiency Pump Inverter


99.6% High Efficiency Pump Inverter For Off Grid System is constructed with solar panel array, solar pump inverter and AC water pump, DC current produced from solar panel will be delivered to solar pump inverter, and it will convert it into AC current to drive water pump, and will automatically regulate output frequency according to sun radiance intensity, maximum realize MPPT tracking function.

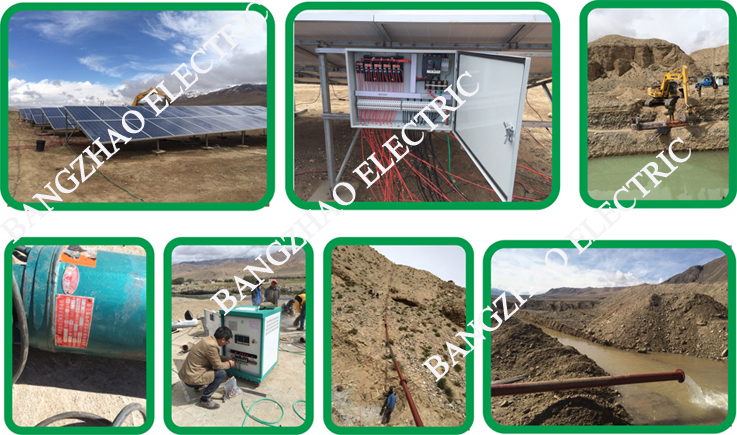

63kw solar pumping system :



Technical Data for 99.6% High Efficiency Pump Inverter

Model:SPI-

30KW

37KW

45KW

64KW

75KW

90KW

110KW

132KW

150KW

D.C.  Input

Max.input  voltage(VDC)

850V

Recommended

MPPT  voltage

400-800V

Max.MPPT  Efficiency

99%

Number  of String

1

1

1

1

1

1

1

1

1

AC  Input Function

Optional

A.C.  Output

Max.Motor

Output  Power(KW)

26-30

37

40-45

55-64

75

90

110

132

150

Rated  Output Voltage

380V  three phase

Output

Frequency  Range

0-50/60HZ

Rated  Output Current

60

75

90

130

150

180

220

260

300

Other  Parameters

Protection  Level

IP20

Operating  Temperature

-25~+60; above 60 need derate operating

Cooling  Way

Natural  Cooling

Display

LCD

Communication

RS485(Optional)

Altitude

3000m;above  3000m need derate operating

Noise  Emlsslon

50dB

Compliance

EN62109-1:2010;  EN62109-2:2011;EN61000-6-3;EN61000-6-1; EN61000-3-12; EN61000-3-11
